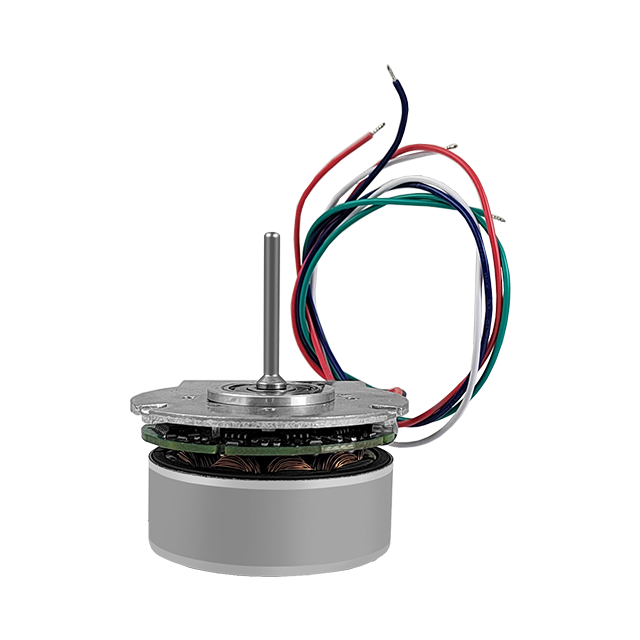

LD-EO4830

LD-EO4830

  • Printer

Technical Parameter

MODEL
  • LD-EO4830
VOLTAGE
  • OPERATING RANGE
  • (V/DC)
  • 23~25
  • NOMINAL
  • (V/DC)
  • 24
NO LOAD
  • SPEED
  • (rpm)
  • 4900
  • CURRENT
  • (A)
  • 0.14
RATED LOAD
  • SPEED
  • (rpm)
  • 3160
  • CURRENT
  • (A)
  • 0.49
  • TORQUE
  • (mNm)
  • 20
  • OUTPUT
  • (W)
  • 6.62
  • EFFICI ENCY
  • 56.39%
AT MAXIMUM EFFICI ENCY
  • SPEED
  • (rpm)
  • 3609
  • CURRENT
  • (A)
  • 0.4
  • TORQUE
  • (mNm)
  • 14.84
  • OUTPUT
  • W
  • 5.61
  • EFFICI ENCY
  • 58.46%
STALL
  • TORQUE
  • mNm
  • 56.32
  • CURRENT
  • A
  • 1.12

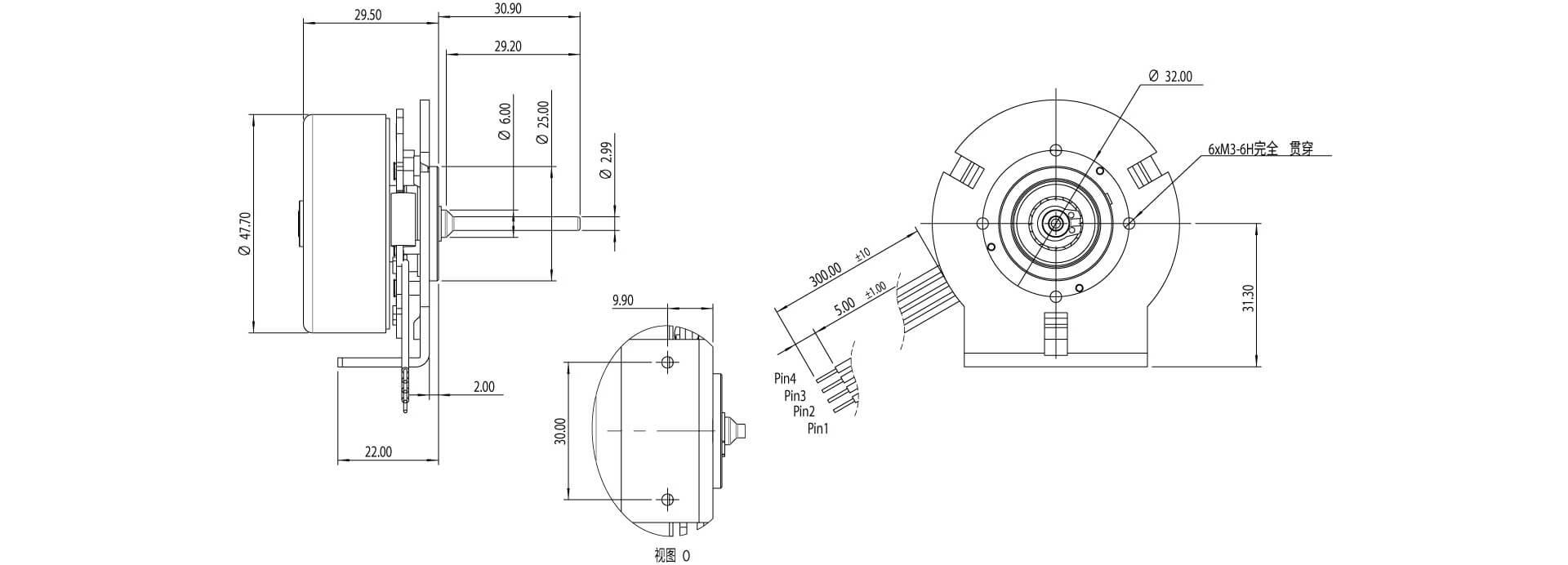

Cad drawings

LD-EO4830
