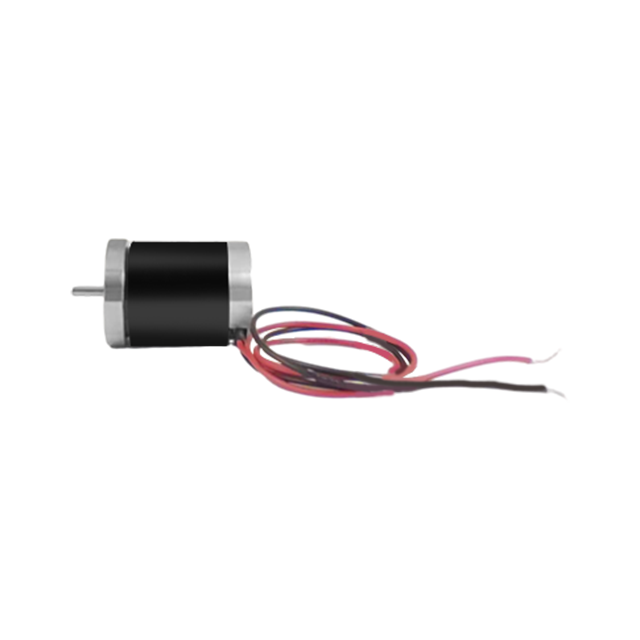

LD-CF2230

LD-CF2230

  • 特種馬達

技術(shù)參數(shù)

MODEL
  • LD-CF2230
VOLTAGE
  • OPERATING RANGE
  • (V/DC)
  • 2~4
  • NOMINAL
  • (V/DC)
  • 3
NO LOAD
  • SPEED
  • (rpm)
  • 3790
  • CURRENT
  • (A)
  • 0.01
RATED LOAD
  • SPEED
  • (rpm)
  • 3100
  • CURRENT
  • (A)
  • 0.19
  • TORQUE
  • (mNm)
  • 1.25
  • OUTPUT
  • (W)
  • 0.41
  • EFFICI ENCY
  • 73.11%
AT MAXIMUM EFFICI ENCY
  • SPEED
  • (rpm)
  • 3441
  • CURRENT
  • (A)
  • 0.10
  • TORQUE
  • (mNm)
  • 0.63
  • OUTPUT
  • W
  • 0.23
  • EFFICI ENCY
  • 77.08%
STALL
  • TORQUE
  • mNm
  • 6.87
  • CURRENT
  • A
  • 0.97

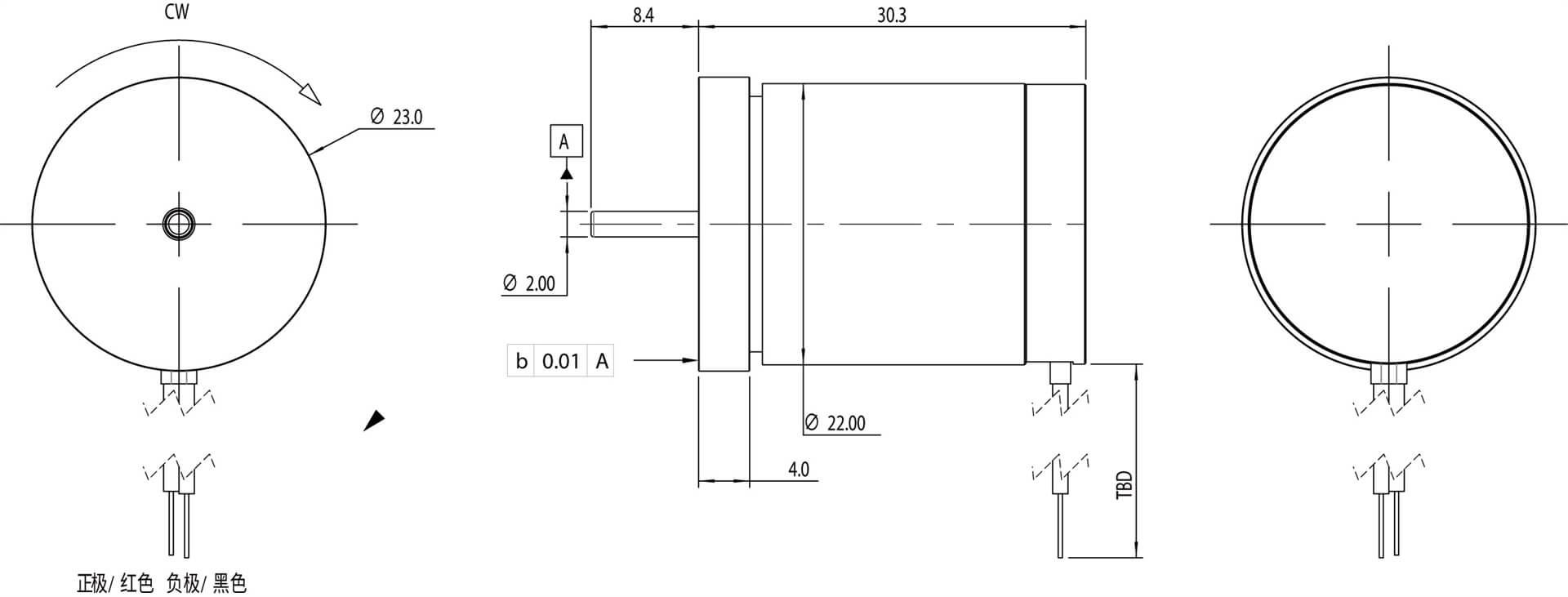

CAD圖紙

LD-CF2230
