LD-CF1620

LD-CF1620

  • 特種馬達(dá)

技術(shù)參數(shù)

MODEL
  • LD-CF1620
VOLTAGE
  • OPERATING RANGE
  • (V/DC)
  • 2.7~4.7
  • NOMINAL
  • (V/DC)
  • 3.7
NO LOAD
  • SPEED
  • (rpm)
  • 5530
  • CURRENT
  • (A)
  • 0.03
RATED LOAD
  • SPEED
  • (rpm)
  • 4480
  • CURRENT
  • (A)
  • 0.14
  • TORQUE
  • (mNm)
  • 0.59
  • OUTPUT
  • (W)
  • 0.28
  • EFFICI ENCY
  • 53.25%
AT MAXIMUM EFFICI ENCY
  • SPEED
  • (rpm)
  • 4493
  • CURRENT
  • (A)
  • 0.14
  • TORQUE
  • (mNm)
  • 0.58
  • OUTPUT
  • W
  • 0.27
  • EFFICI ENCY
  • 53.25%
STALL
  • TORQUE
  • mNm
  • 3.10
  • CURRENT
  • A
  • 0.60

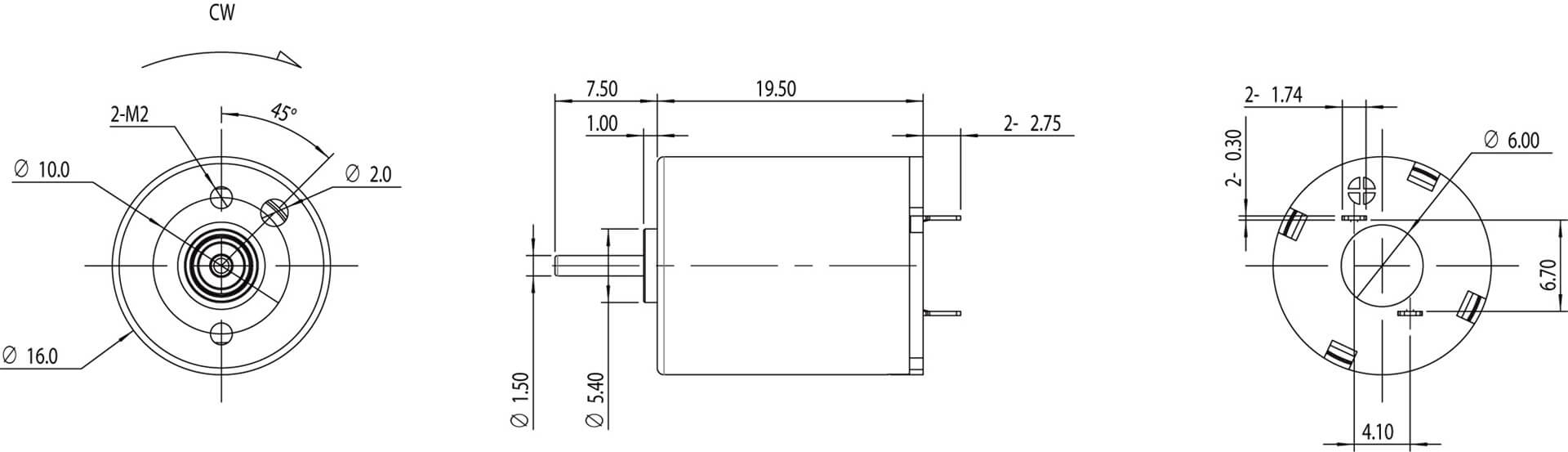

CAD圖紙

LD-CF1620
