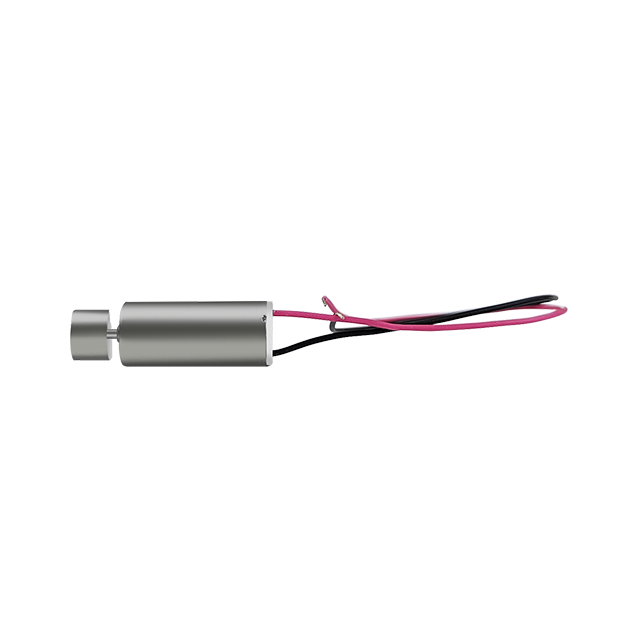

LD-CF0716

LD-CF0716

  • 特種馬達(dá)

技術(shù)參數(shù)

MODEL
  • LD-CF0716
VOLTAGE
  • OPERATING RANGE
  • (V/DC)
  • 1.0~1.5
  • NOMINAL
  • (V/DC)
  • 1.3
NO LOAD
  • SPEED
  • (rpm)
  • 12000
  • CURRENT
  • (A)
  • 0.10
RATED LOAD
  • SPEED
  • (rpm)
  • 9400
  • CURRENT
  • (A)
  • 0.50
  • TORQUE
  • (mNm)
  • 0.40
  • OUTPUT
  • (W)
  • 0.39
  • EFFICI ENCY
  • 60.57%
AT MAXIMUM EFFICI ENCY
  • SPEED
  • (rpm)
  • 9783
  • CURRENT
  • (A)
  • 0.44
  • TORQUE
  • (mNm)
  • 0.34
  • OUTPUT
  • W
  • 0.35
  • EFFICI ENCY
  • 60.93%
STALL
  • TORQUE
  • mNm
  • 1.85
  • CURRENT
  • A
  • 1.95

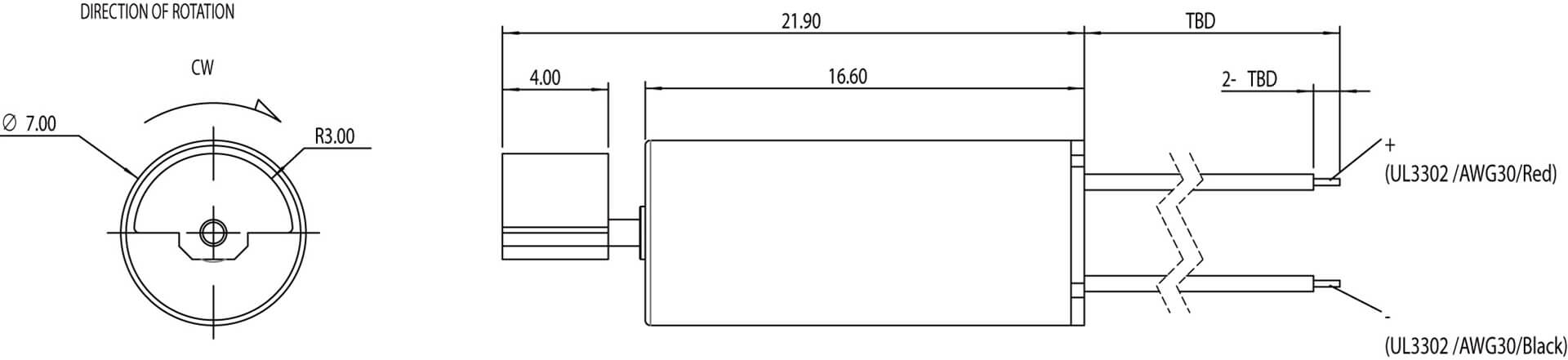

CAD圖紙

LD-CF0716
