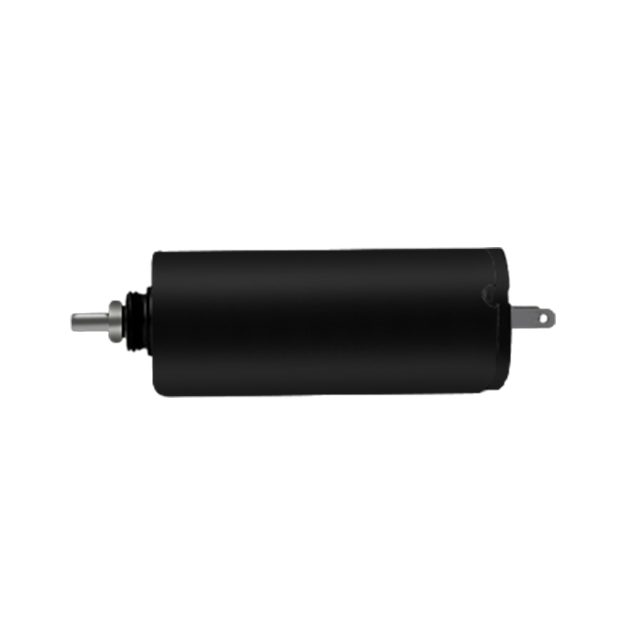

LD-CF1230

LD-CF1230

  • 特種馬達(dá)

技術(shù)參數(shù)

MODEL
  • LD-CF1230
VOLTAGE
  • OPERATING RANGE
  • (V/DC)
  • 10~14
  • NOMINAL
  • (V/DC)
  • 12
NO LOAD
  • SPEED
  • (rpm)
  • 10700
  • CURRENT
  • (A)
  • 0.01
RATED LOAD
  • SPEED
  • (rpm)
  • 9600
  • CURRENT
  • (A)
  • 0.12
  • TORQUE
  • (mNm)
  • 1.00
  • OUTPUT
  • (W)
  • 1.01
  • EFFICI ENCY
  • 72.84%
AT MAXIMUM EFFICI ENCY
  • SPEED
  • (rpm)
  • 9841
  • CURRENT
  • (A)
  • 0.09
  • TORQUE
  • (mNm)
  • 0.78
  • OUTPUT
  • W
  • 0.81
  • EFFICI ENCY
  • 73.24%
STALL
  • TORQUE
  • mNm
  • 9.73
  • CURRENT
  • A
  • 1.05

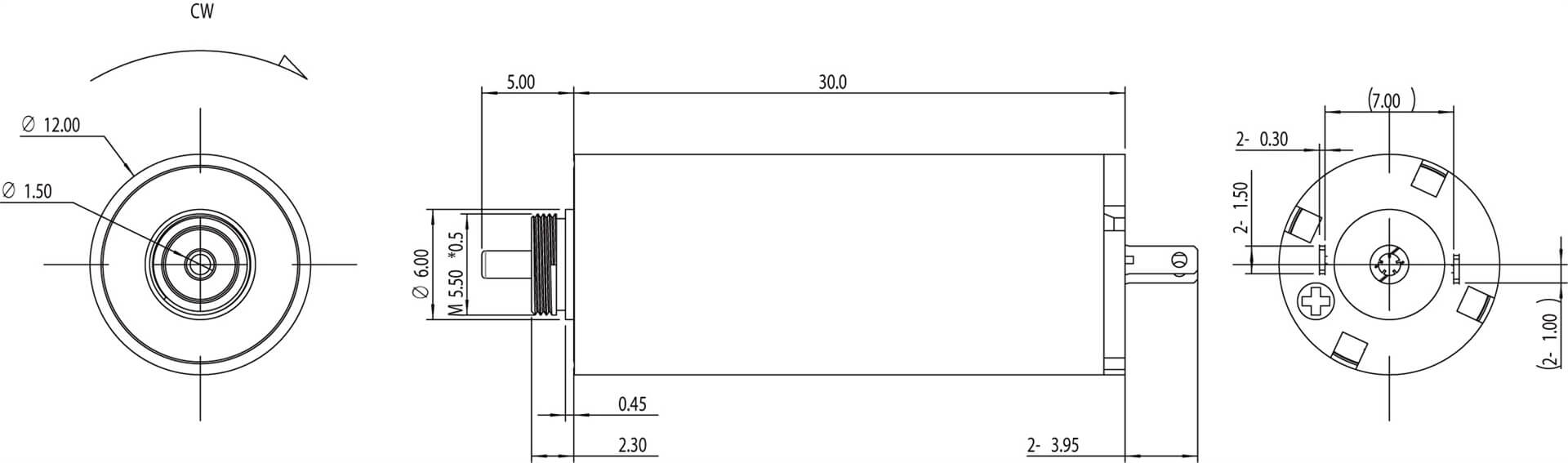

CAD圖紙

LD-CF1230
