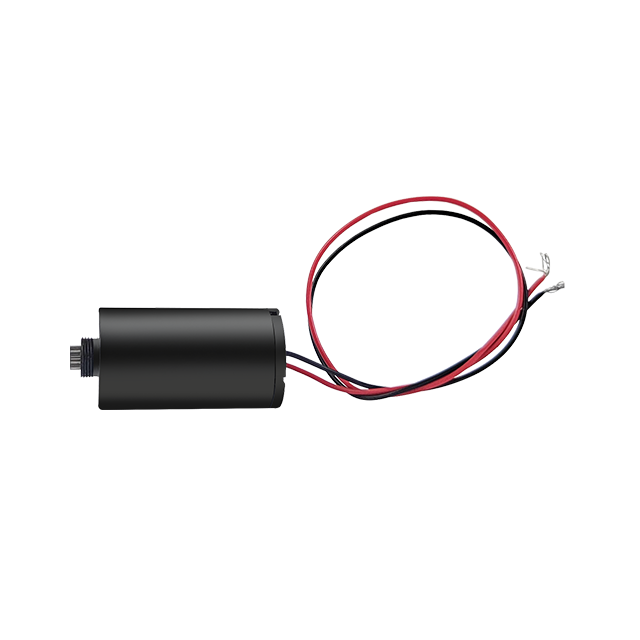

LD-CF1222

LD-CF1222

  • 特種馬達(dá)

技術(shù)參數(shù)

MODEL
  • LD-CF1222
VOLTAGE
  • OPERATING RANGE
  • (V/DC)
  • 3~6
  • NOMINAL
  • (V/DC)
  • 5
NO LOAD
  • SPEED
  • (rpm)
  • 30000
  • CURRENT
  • (A)
  • 0.13
RATED LOAD
  • SPEED
  • (rpm)
  • 20750
  • CURRENT
  • (A)
  • 1.55
  • TORQUE
  • (mNm)
  • 2.00
  • OUTPUT
  • (W)
  • 4.35
  • EFFICI ENCY
  • 56.07%
AT MAXIMUM EFFICI ENCY
  • SPEED
  • (rpm)
  • 25691
  • CURRENT
  • (A)
  • 0.79
  • TORQUE
  • (mNm)
  • 0.93
  • OUTPUT
  • W
  • 2.51
  • EFFICI ENCY
  • 63.20%
STALL
  • TORQUE
  • mNm
  • 6.49
  • CURRENT
  • A
  • 4.73

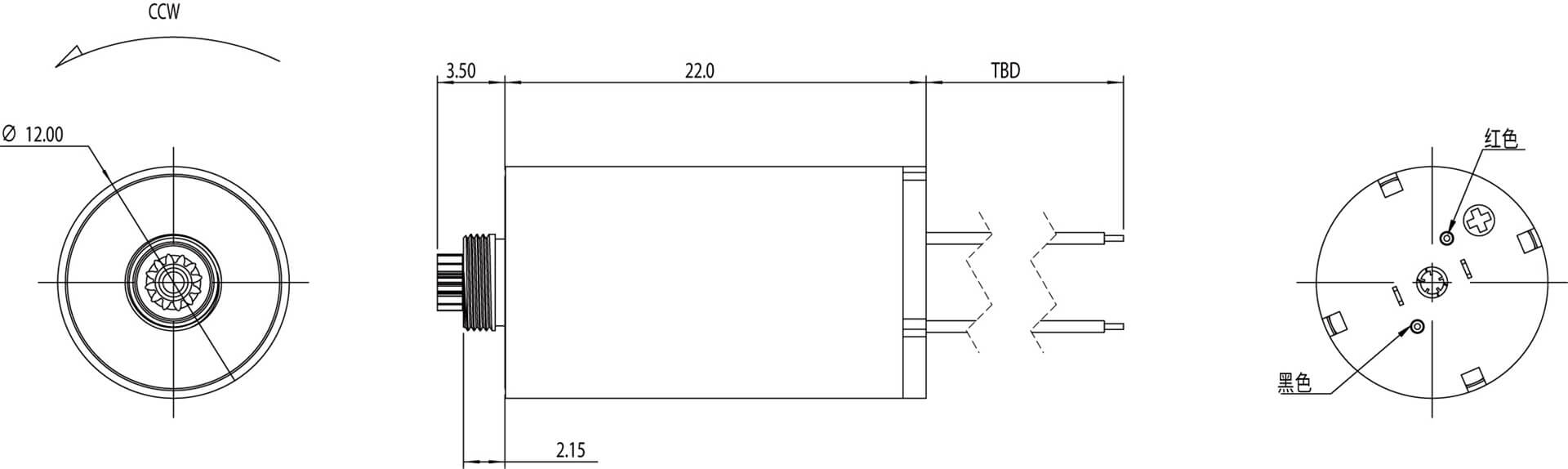

CAD圖紙

LD-CF1222
