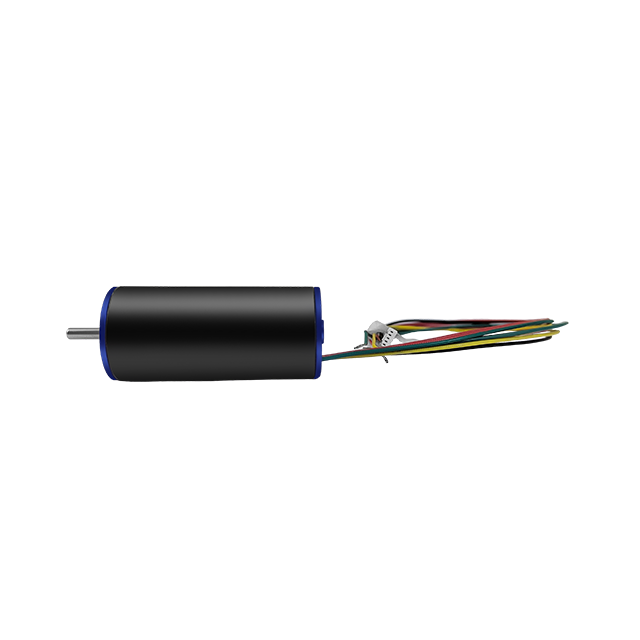

LD-BI2453

LD-BI2453

  • 特種馬達(dá)

技術(shù)參數(shù)

MODEL
  • LD-BI2453
VOLTAGE
  • OPERATING RANGE
  • (V/DC)
  • 22~26
  • NOMINAL
  • (V/DC)
  • 24
NO LOAD
  • SPEED
  • (rpm)
  • 12700
  • CURRENT
  • (A)
  • 0.17
RATED LOAD
  • SPEED
  • (rpm)
  • 11400
  • CURRENT
  • (A)
  • 1.35
  • TORQUE
  • (mNm)
  • 20.00
  • OUTPUT
  • (W)
  • 23.87
  • EFFICI ENCY
  • 73.69%
AT MAXIMUM EFFICI ENCY
  • SPEED
  • (rpm)
  • 11334
  • CURRENT
  • (A)
  • 1.41
  • TORQUE
  • (mNm)
  • 21.02
  • OUTPUT
  • W
  • 24.95
  • EFFICI ENCY
  • 73.71%
STALL
  • TORQUE
  • mNm
  • 195.38
  • CURRENT
  • A
  • 11.70

CAD圖紙

LD-BI2453
