LD-EO7040

LD-EO7040

  • 工業(yè)設(shè)備

技術(shù)參數(shù)

MODEL
  • LD-EO7040
VOLTAGE
  • OPERATING RANGE
  • (V/DC)
  • 22~26
  • NOMINAL
  • (V/DC)
  • 24.0
NO LOAD
  • SPEED
  • (rpm)
  • 5000
  • CURRENT
  • (A)
  • 1.00
RATED LOAD
  • SPEED
  • (rpm)
  • 4800
  • CURRENT
  • (A)
  • 2.20
  • TORQUE
  • (mNm)
  • 60.00
  • OUTPUT
  • (W)
  • 30.16
  • EFFICI ENCY
  • 57.12%
AT MAXIMUM EFFICI ENCY
  • SPEED
  • (rpm)
  • 4239
  • CURRENT
  • (A)
  • 5.57
  • TORQUE
  • (mNm)
  • 228.39
  • OUTPUT
  • W
  • 101.37
  • EFFICI ENCY
  • 75.86%

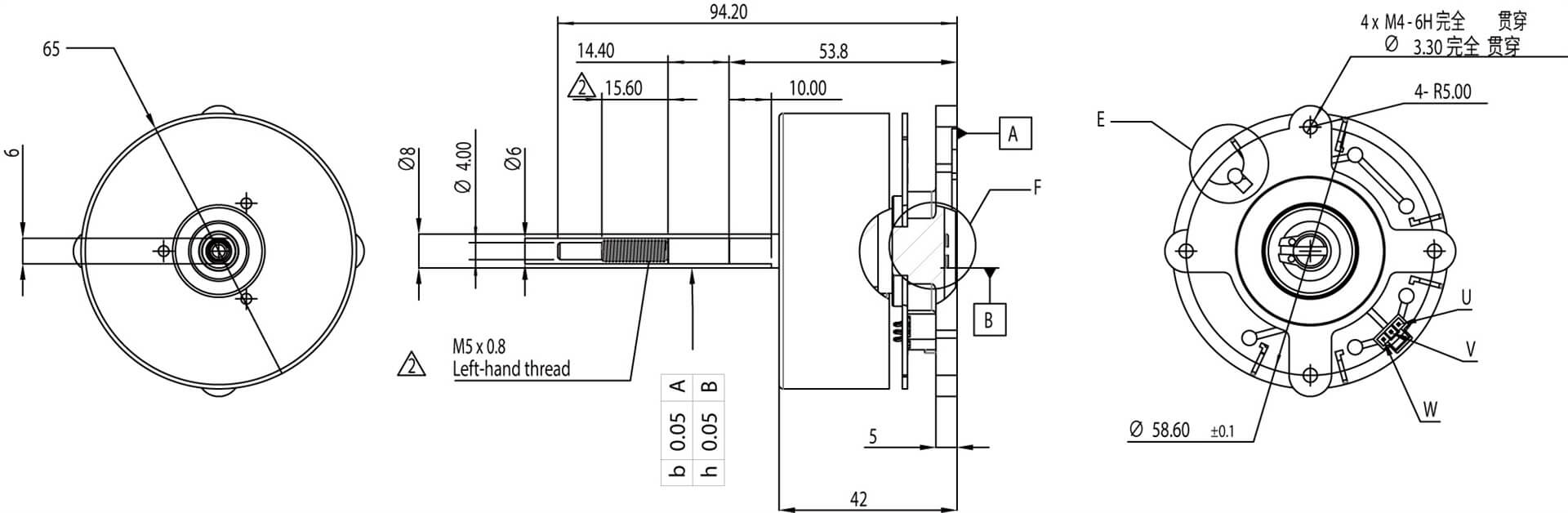

CAD圖紙

LD-EO7040
