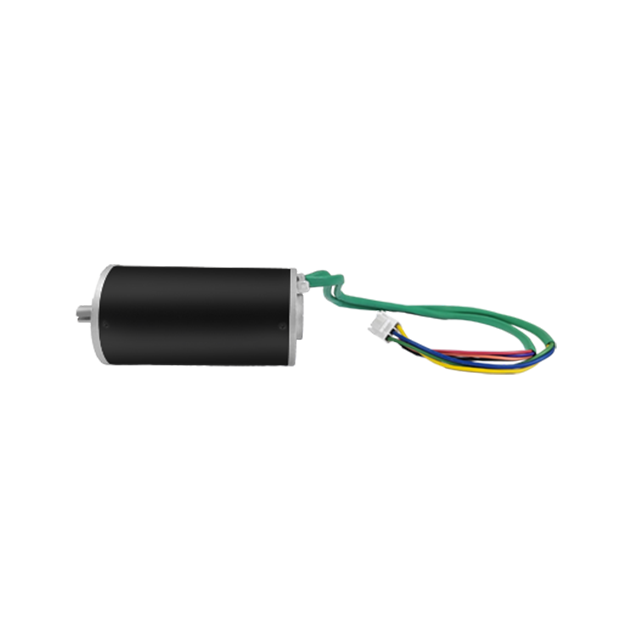

LD-EI4279

LD-EI4279

  • 窗簾

技術(shù)參數(shù)

MODEL
  • LD-EI4279
VOLTAGE
  • OPERATING RANGE
  • (V/DC)
  • 10～15
  • NOMINAL
  • (V/DC)
  • 12
NO LOAD
  • SPEED
  • (rpm)
  • 4140
  • CURRENT
  • (A)
  • 0.38
RATED LOAD
  • SPEED
  • (rpm)
  • 3241
  • CURRENT
  • (A)
  • 3.36
  • TORQUE
  • (mNm)
  • 82.00
  • OUTPUT
  • (W)
  • 27.83
  • EFFICI ENCY
  • 69.02%
AT MAXIMUM EFFICI ENCY
  • SPEED
  • (rpm)
  • 3556
  • CURRENT
  • (A)
  • 2.32
  • TORQUE
  • (mNm)
  • 53.25
  • OUTPUT
  • W
  • 19.83
  • EFFICI ENCY
  • 71.37%
STALL
  • TORQUE
  • mNm
  • 377.62
  • CURRENT
  • A
  • 14.10

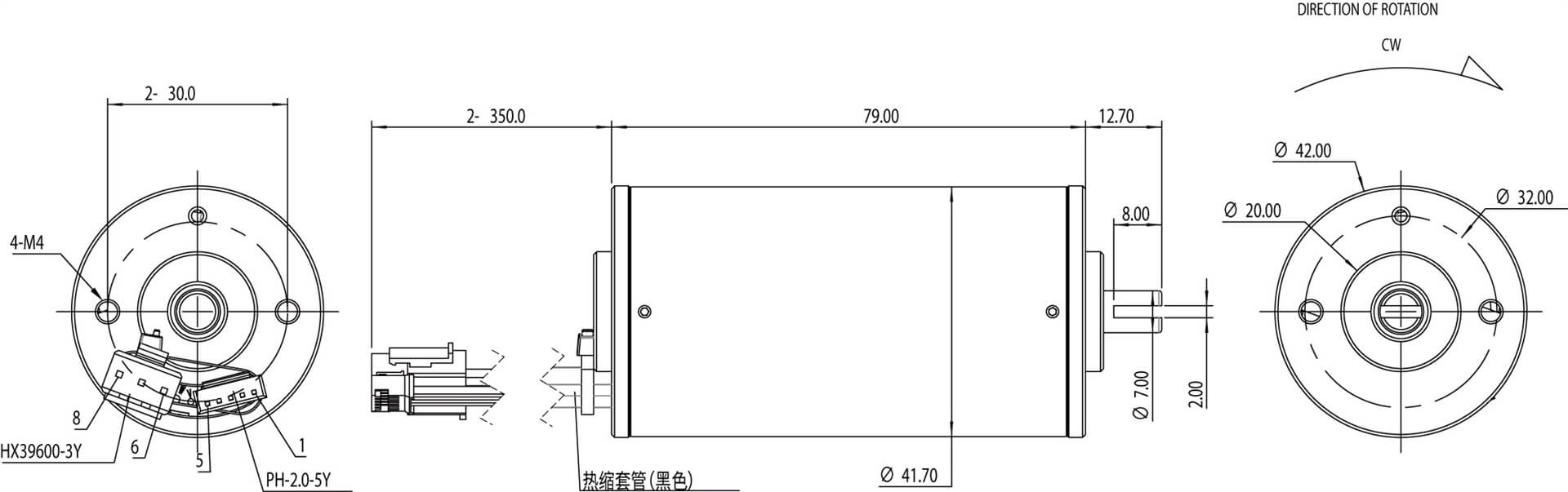

CAD圖紙

LD-EI4279
